Product Details
+
Description

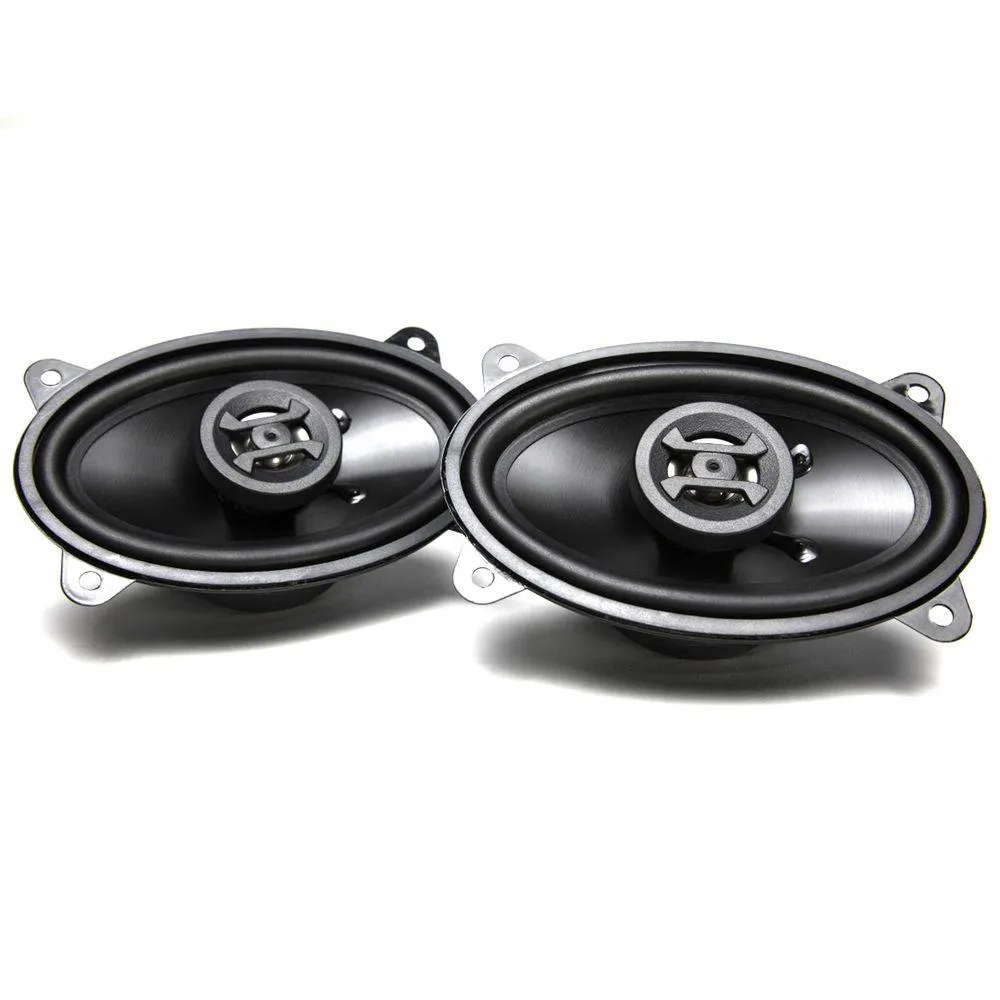

Hifonics Zeus 4x6 inch 2 way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair).
- RMS POWER HANDLING (CEA426B)
40 - MAXX POWER
200 - SPEAKER IMPEDANCE
4 Ω - FREQUENCY RESPONSE /- 3DB
55 Hz - 19 kHz - SENSITIVITY (1 WATT/1 METER)
88 db - CROSSOVER POINT
6 khz - CROSSOVER SLOPE
12dB - MOUNTING DIAMETER/CUT OUT
5.5 x 3.46 - OUTSIDE DIAMETER
5.94 x 3.84 - MOUNTING DEPTH/CHASSIS DEPTH
3 - DIMENSIONS
10.25 x 7.25 x 3 in - WEIGHT
2.2 lbs - TWEETER DOME MATERIAL:Neo-Mylar Soft Dome Tweeter Impact Resistant Tweeter Elements
- SURROUND:Rubber Moisture Resistant Rubber Surround with high Mid-Bass Impact
- CONE:Alpha-Cellulose Cones Light weight for speed and very rigid for deep bass
- SURROUND / CONE COUPLING:High Temperature Adhesive Special adhesive is chosen to create a permanent bond between the cone and the surround
- TINSEL LEADS:Braided Highly conductive while remain flexible during high power applications
- VOICE COIL:Pure Copper Creates strong magnetic field with a very thin extrusion
- VOICE COIL FORMER:Kapton Lightweight and efficiently dissipates heat
- SPIDER:Epoxy infused Natural Fiber Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
- COOLING SYSTEM: Overcoil Air is exchanged over the voice coil through the spider
- CROSSOVER TYPE: Passive Butterworth Smooth transition of frequencies from midrange/midbass to the tweeter element
- FRAME TYPE: Anti-Resonant Stamped Steel Basket Very strong with minimal harmonics or distortions from flex or ringing
- MOTOR: Ferrite Magnet Creates a strong magnetic field while remaining small enough to fit nearly every application
- CONNECTORS: Spade Use spade connectors or solder direct for the best connection
- GRILLS: No. Typical installation mounts speakers behind a panel or dash
- TWEETER MATERIAL: Neo-Mylar Soft Dome Great sound quality and increased reliability
- TWEETER SIZE: 1 inch Clear highs while handling plenty of power without sound harsh
- TWEETER SURROUND MATERIAL: Kapton Lightweight and efficiently dissipates heat
